SIL 1 Explained
SIL 1 is the lowest Safety Integrity Level defined within functional safety standards such as IEC 61511 and IEC 61508. Although it represents the lowest level of risk reduction within the SIL framework, it still plays an important role in protecting people, assets, and the environment.
Organizations commonly assign the target level requirements to Safety Instrumented Functions (SIFs) that address lower-consequence hazards or situations where a moderate level of risk reduction is required.
Understanding the target level requirements helps engineering teams design appropriate protection layers, perform verification activities, and maintain compliance throughout the safety lifecycle.
If you are new to Safety Integrity Levels, review our Safety Integrity Levels (SIL) Explained guide before exploring SIL 1 requirements in detail.
What Is SIL 1?
SIL 1 is the first of four Safety Integrity Levels used to define the performance requirements of Safety Instrumented Functions.
A function assigned this level must achieve a risk reduction factor between 10 and 100.

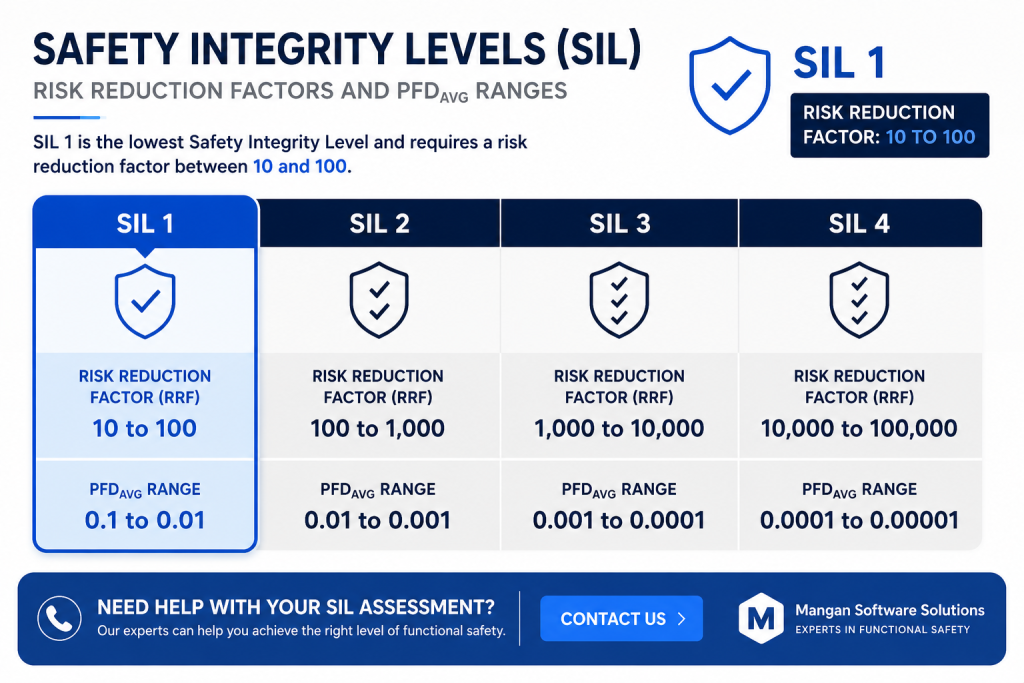

- SIL 1 = Risk Reduction Factor of 10 to 100
- SIL 2 = Risk Reduction Factor of 100 to 1,000
- SIL 3 = Risk Reduction Factor of 1,000 to 10,000
- SIL 4 = Risk Reduction Factor of 10,000 to 100,000
This level is commonly used within process industry applications where additional protection is required but higher levels of risk reduction are not necessary.
SIL 1 Risk Reduction Requirements
SIL 1 functions are designed to reduce the likelihood of hazardous events by providing a defined level of risk reduction.
For low demand applications, the performance requirements are:
- Risk Reduction Factor: 10 to 100
- PFDavg: 0.1 to 0.01
These requirements influence equipment selection, proof testing strategies, and lifecycle management activities.
Organizations must demonstrate that the safety function can consistently achieve the required performance throughout its operational life.
Common Process Industry Applications
This safety integrity level is frequently applied to hazards that require additional protection but do not justify higher SIL targets.
Common examples include:
- tank overfill protection systems
- utility shutdown functions
- equipment protection systems
- basic process shutdown functions
- low consequence process hazards
The appropriate level should always be determined through a formal risk assessment process rather than selected arbitrarily.

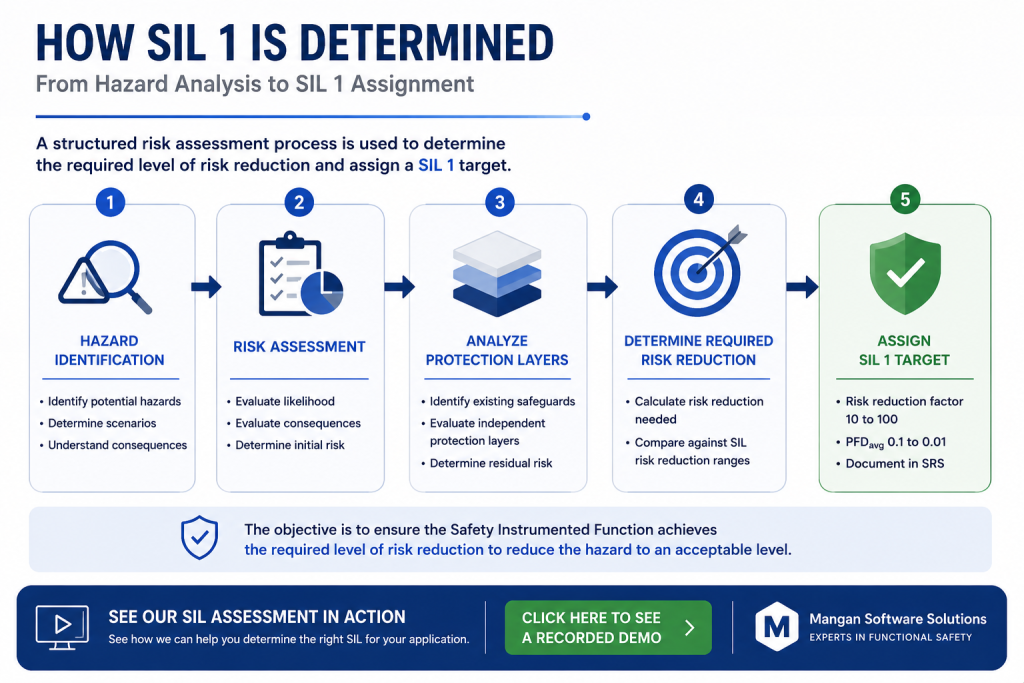

How SIL 1 Is Determined
Organizations typically determine SIL requirements through hazard and risk assessment activities.
Common methods include:
- Layer of Protection Analysis (LOPA)
- Risk Graph methodologies
- Corporate Risk Matrices
- Semi-quantitative risk assessments
The objective is to identify how much risk reduction is required to reduce hazards to an acceptable level.
For additional information, review our SIL Determination guide.
IEC 61511 Requirements
IEC 61511 provides the functional safety framework used by the process industries to manage Safety Instrumented Systems throughout their lifecycle.
Within IEC 61511, this level influences:
- Safety Requirements Specifications
- proof test intervals
- verification activities
- maintenance requirements
- validation activities
- functional safety assessments
IEC 61511 is based on the functional safety principles established by the International Electrotechnical Commission. Learn more on the official IEC website.
For additional background, review our IEC 61511 guide.
SIL 1 Verification Activities
Verification activities help confirm that the proposed design achieves the required level of risk reduction.
These activities typically include:
- PFDavg calculations
- device reliability analysis
- proof test interval evaluation
- failure rate assessments
- design reviews
Verification helps ensure that the safety function performs as intended throughout the lifecycle.
Learn more in our SIL Verification guide.
Common Misconceptions About SIL 1
One common misconception is that this level provides minimal protection and therefore has little value.
In reality, many process industry hazards can be adequately managed using the target level functions when supported by proper design, operation, and maintenance practices.
Another misconception is that lower SIL targets require less lifecycle management. All Safety Instrumented Functions require appropriate documentation, testing, validation, and ongoing maintenance regardless of the assigned SIL level.
Understanding Safety Integrity Level 1
SIL 1 is an important component of functional safety programs across many industries.
By understanding its requirements, organizations can design effective Safety Instrumented Functions, perform appropriate verification activities, and maintain compliance with IEC 61511 requirements.
To continue learning about Safety Integrity Levels, review our Safety Integrity Levels (SIL) Explained, SIL Verification, and IEC 61511 guides.
